LED & LCD DIGITAL PANEL METERS

DK800-900 Series

Large 3 1/2 Digit LCD & LED Displays

Description:

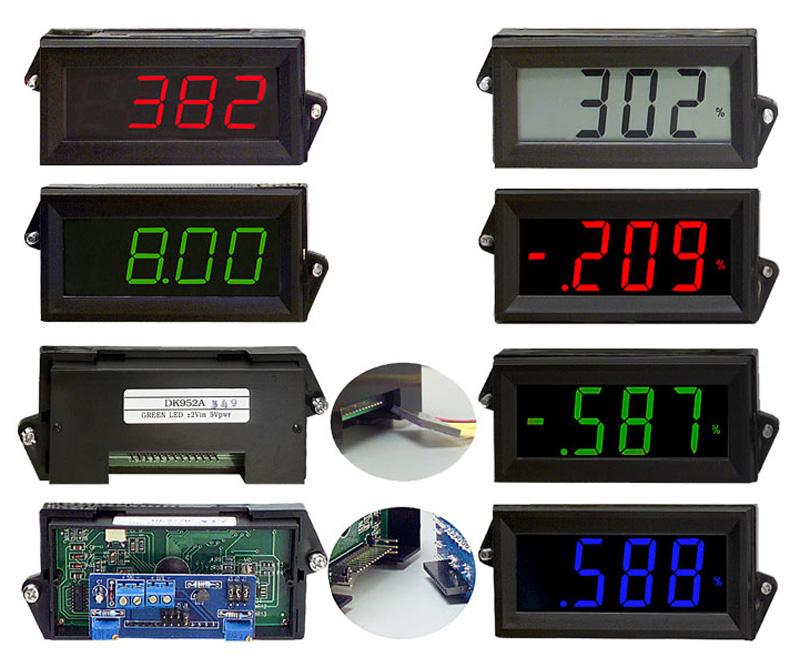

The LCD provides a large,.98”, 3-1/2 digit black, green, red or blue display.
The LED provides a large, .8”, 3-1/2 digit, green or red display.

LCD Features:
• Decimal point user selectable
• Eng. units user selectable
• Snap-in panel mounting
• Large .98” digits for easy viewing

LED Features:
• Decimal point user selectable
• Snap-in panel mounting
• Large .8” digits for easy viewing

All models:
• Gasket and clamp provided for optional NEMA applications

Specifications:
Display:
Digits: 3 1/2 Digits (±1999 counts)
Type: 0.98” ( 24.9 mm) LCD
           0.8” (20.3 mm) LED
Polarity: Automatic, “-” Displayed.
Decimal Points: 3 Position, User Selectable
Overload: Three lower order digits blank for inputs >1999 & <-1999
Hold: Display Hold Function is Standard
Annunciators: PSI, PSI,°F,°C,% (user selected, LCD only)
Inputs:
Ranges: ±200.0mV, +/-2.000V, +/-20.00V DC, 4-20mA
Configuration: Bipolar, Differential
Protection: ±350V DC, (±100V DC on 200mV Range)
Impedance: >1 Megohm, (>10 Megohm on 200mV Range)
Performance: Accuracy: ±(0.05% FS +1 counts)
Conversion Rate: 3 per Second
Normal Mode Rejection: >30 db @ 60 Hz
Common Mode Range: ±1V DC
Common Mode Rej.: >86 dB
Zero Adjustment: Automatic
Warmup: 10 Minutes Typical
Temperature Coeff.: ±100 ppm per °C Typical
Environment:
Operating Range: -10 to 50 °C
Storage Range: -40 to 75 °C
Power Supply:
Voltage input units: +5V DC (180mA LED, 3mA LCD)
     DK807: powered by mA control loop
     DK757,DK857,DK957: +24V DC (40mA)
Mounting:
Snap-In Panel Mount
Connection:
4 screw terminal (4-20mA)
13 pin male connection (voltage)
13 pin connector/wiring harness included

Ordering Information:

DK757B ................4-20mA loop powered LCD, 24V BLUE NEG. B/L
DK801A ................200mV input LCD
DK802A ................2V input LCD
DK803A ................20V input LCD
DK807A ................4-20mA loop powered LCD
DK851A ................200mV input - RED LED
DK852A ................2V input - RED LED
DK853A ................20V input - RED LED
DK857B ................4-20mA loop poweredLCD , 24V RED NEG. B/L
DK857A ................4-20mA loop controlled - RED LED
DK951A ................200mV input - GREEN LED
DK952A ................2V input - GREEN LED
DK953A ................20V input - GREEN LED
DK957A ................4-20mA loop controlled - GREEN LED
DK957B ................4-20mA loop powered LCD, 24V GREEN NEG. B/L

Go to Digi-Key Website to Order

Download PDF (includes cutout and dimensions)

Download Wiring Diagram

Look for our quality C-TON products at Digi-Key.
Keyword: c-ton or enter part number
