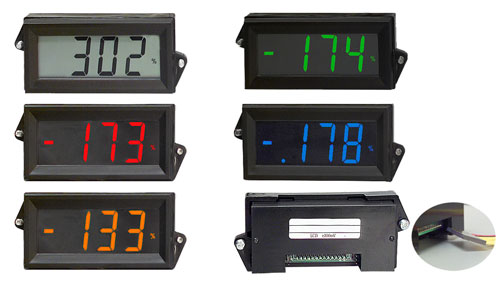

◊ Large, 1”, 3½ digit display for easy viewing
◊ Non-backlit LCD or choice of AMBER, GREEN, RED or BLUE backlit LCD
◊ Standard 1/8 DIN package
◊ Decimal point user selectable
◊ Engineering units user selectable
◊ Snap-in panel mounting
◊ 13 pin connector / wiring harness included
◊ Gasket and clamp provided for NEMA 4, NEMA 12, & IP66 applications
SPECIFICATIONS:
Display:
Digits:
3 ½ digits (±19999 counts)
Type:
1” ( 24.9 mm) high contrast LCD
Polarity:
automatic, “-” displayed.
Decimal Points:
3 position, user selectable
Overrange:
three lower order digits blank for inputs >1999 & < -1999
Hold:
display hold function is standard
Annunciators: PSI, °F, °C, % (user selected)
Inputs:
Ranges:
±200.0 mV, +/-2.000 V, +/-20.00 VDC
Configuration:
bipolar, differential
Protection:
±350 VDC, (±100 VDC on 200 mV range)
Impedance:
>1 M, (>10 M on 200 mV range)
Performance:
Accuracy:
±(0.05% FS +1 counts)
Conversion Rate:
3 per second
Normal Mode Rejection:
>30 dB @ 60 Hz
Common Mode Range:
±1 VDC
Common Mode Rej.:
>86 dB
Zero Adjustment:
automatic
Warmup:
10 minutes typical
Temperature Coefficiant:
±100 ppm per °C typical
Environment:
Operating Range:
-10 to 50 °C
Storage Range:
-40 to 75 °C
Power Supply:
5V powered:
+5 VDC (±5%) 3 mA @ 5 V
Backlighting:
35 mA typical @ 24 VDC
Mounting:
snap-in panel mount or clamp and gasket (included)
Connection:
13 pin male connection
Ordering Information:
PART NUMBER
BACKLIGHT COLOR
METER INPUT
BACKLIGHT POWER
DK801A
NO BACKLIGHT
200mV
NONE
DK802A
NO BACKLIGHT
2V
NONE
DK803A
NO BACKLIGHT
20V
NONE
DK801-A24
AMBER
200mV
24VDC
DK802-A24
AMBER
2V
24VDC
DK803-A24
AMBER
20V
24VDC
DK801-B24
BLUE
200mV
24VDC
DK802-B24
BLUE
2V
24VDC
DK803-B24
BLUE
20V
24VDC
DK801-G24
GREEN
200mV
24VDC
DK802-G24
GREEN
2V
24VDC
DK803-G24
GREEN
20V
24VDC
DK801-R24
RED
200mV
24VDC
DK802-R24
RED
2V
24VDC
DK803-R24
RED
20V
24VDC
J4C13
13 Pin Connector / Wire Assembly
PW2-5
Regulated 120V AC to 5V DC Power Supply
PW2-24
Regulated 120V AC to 24V DC Power Supply
PW1.0
24V AC to adjustable DC output
CPW1.5
24V AC to adjustable DC output
CVC
Calibrator
