LCD
DIGITAL PANEL

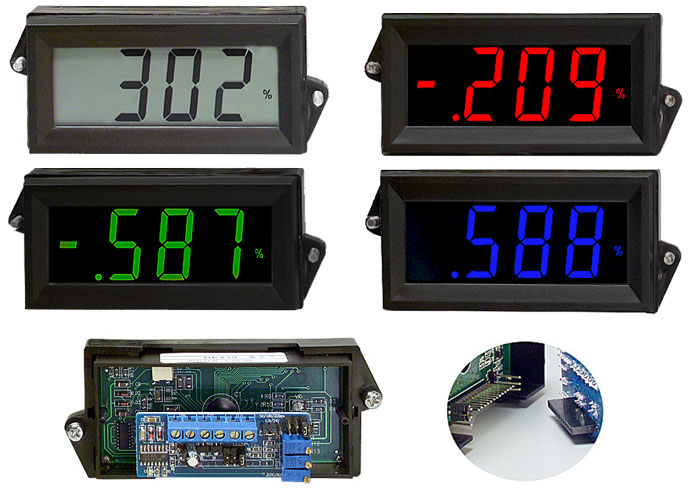

METERS Large 3 1/2 Digit LCD Displays - Adjustable Voltage Input |
|||||||||||||||||||
|
|
|
||||||||||||||||||
|
Features: • The LCD provides a large, .98”, 3 1/2 digit display. • Decimal point user selectable • Eng. units user selectable • Neg. Blue, Green or Red backlighting available |
• Snap-in panel mounting • Large .98” digits for easy viewing • Gasket and clamp provided for optional NEMA applications |
||||||||||||||||||
|
|
Specifications:
Display: Digits: 3 ½ digits (±1999 counts) Type: 0.98" (24.9 mm) 7 segment LCD Polarity: Automatic, “-” displayed Annuciators: °F, °C, PSI, %, user selectable Decimal Points: 3 position, user selectable Overload: Three lower order digits blank for inputs >1999 & <-1999 Inputs: Ranges: 200mV, 5V, 10V Configuration: Single ended Impedance: 390KΩ Performance: Accuracy: ±0.05% of Full Scale + 1 count Conversion Rate: 3 per second Normal Mode Rejection: >30 db @ 60 Hz Adjustments: Span (gain)(2) (10V and 5V) and Zero (offset) Warmup: 10 minutes typical Temperature Coeff.: ± 100 ppm per °C typical Offset Range: -1999 to +1999 Gain Range: 1-1000 (custom ranges available) Environment: Operating Range: -10 to 50 °C Storage Range: -40 to 75 °C Power Supply: 24V or 12V @ 10mA B/L 24 Vdc Mounting: Snap-in panel mount or clamp and gasket Connection: 4 screw terminal 6 screw terminal with backlight option
|
Ordering Information:
Go to Digi-Key Website to Order Download PDF (includes cutout and dimensions) |
|||||||||||||||||
|
|||||||||||||||||||
